Recombinant
Anti-PKM2 Mouse mAb
Catalog Number: PTM-5087
$ 280

Clone Number: 11614

Host: Mouse Clonality: Recombinant Monoclonal

Applications: WB ICC/IF FC

Reactivity: Human, Mouse, Rat

Synonyms: CTHBP, OIP-3, Pyruvate kinase 2/3, THBP1, Tumor M2-PK, p58

Product Size
100 μl
Quantity

Shipping: Ambient temperature

Order online or send purchase order to info@ptmbio.com

FAQ Technical Support Protocols

General Information
Isotype IgG1
Conjugate Unconjugated
Synonyms CTHBP, OIP-3, Pyruvate kinase 2/3, THBP1, Tumor M2-PK, p58
UniProt ID

P14618

Immunogen Recombinant human PKM2 fragment
MW (kDa) 58
Specificity Anti-PKM2 Mouse mAb recognizes endogenous level of PKM2 protein.
Product Usage Information
Applications Dilution Recommended Species
WB 1:2000-1:10000 Human, Mouse, Rat
ICC/IF 1:50 Human
FC 1:50 Human
Properties
Purity Protein G purified
Constituents PBS, Glycerol, BSA
Storage Store at -20°C. Avoid freeze/thaw cycles.
Stability Stable for 12 months from date of receipt/reconstitution.
Target Information

Background

PKM2, also known as pyruvate kinase muscle isozyme (PKM), pyruvate kinase type K, cytosolic thyroid hormone-binding protein (CTHBP), thyroid hormone - binding protein 1 (THBP1), or opa-interacting protein 3 (OIP3), is an enzyme that in humans is encoded by the PKM2 gene. PKM2 is an isoenzyme of the glycolytic enzyme pyruvate kinase. Depending upon the different metabolic functions of the tissues, different isoenzymes of pyruvate kinase are expressed. PKM2 is expressed in some differentiated tissues, such as lung, fat tissue, retina, and pancreatic islets, as well as in all cells with a high rate of nucleic acid synthesis, such as normal proliferating cells, embryonic cells, and especially tumor cells.

Cellular location

Nucleus, Cytoplasm

Images

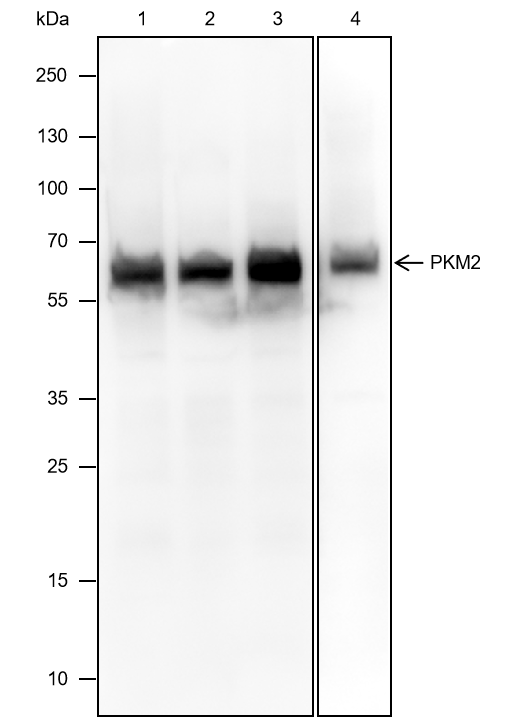

WB

Blocking buffer: 5% NFDM/TBST
Primary Ab dilution: 1:10000
Primary Ab incubation condition: 2 hours at room temperature
Secondary Ab: Goat Anti-Mouse IgG H&L pAb (HRP Conjugate)
Lysate: 1: HeLa, 2: MCF7, 3: C6, 4: Mouse brain
Protein loading amount: 20 μg
Exposure time: 1-3: 10 s, 4: 30 seconds
Predicted band size: 58 kDa
Observed band size: 60 kDa

ICC/IF

Cell line: HeLa
Fixative: 100% Ice-cold methanol
Permeabilization: 0.1% Triton X-100
Primary Ab dilution: 1:50
Primary incubation condition: 4°C overnight
Secondary Ab: Goat Anti-Mouse IgG
Nuclear counter stain: DAPI (blue)
Description: The green color represents the positive signal observed with PTM-5087

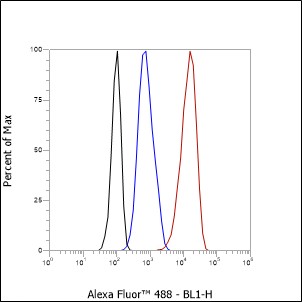

FC

Cell line: HeLa
Fixative: 4% Paraformaldehyde
Permeabilization: 90% Methanol
Primary Ab dilution: 1:50
Secondary Ab: Goat anti-Mouse IgG
Unlabeled control: Cells without incubation with primary and secondary antibodies (black line).
Isotype control: Rabbit monoclonal IgG (blue line).
Description: Line red is the positive signal for PTM-5087.

Research Use

For research use only, not for use in diagnostic procedures.
